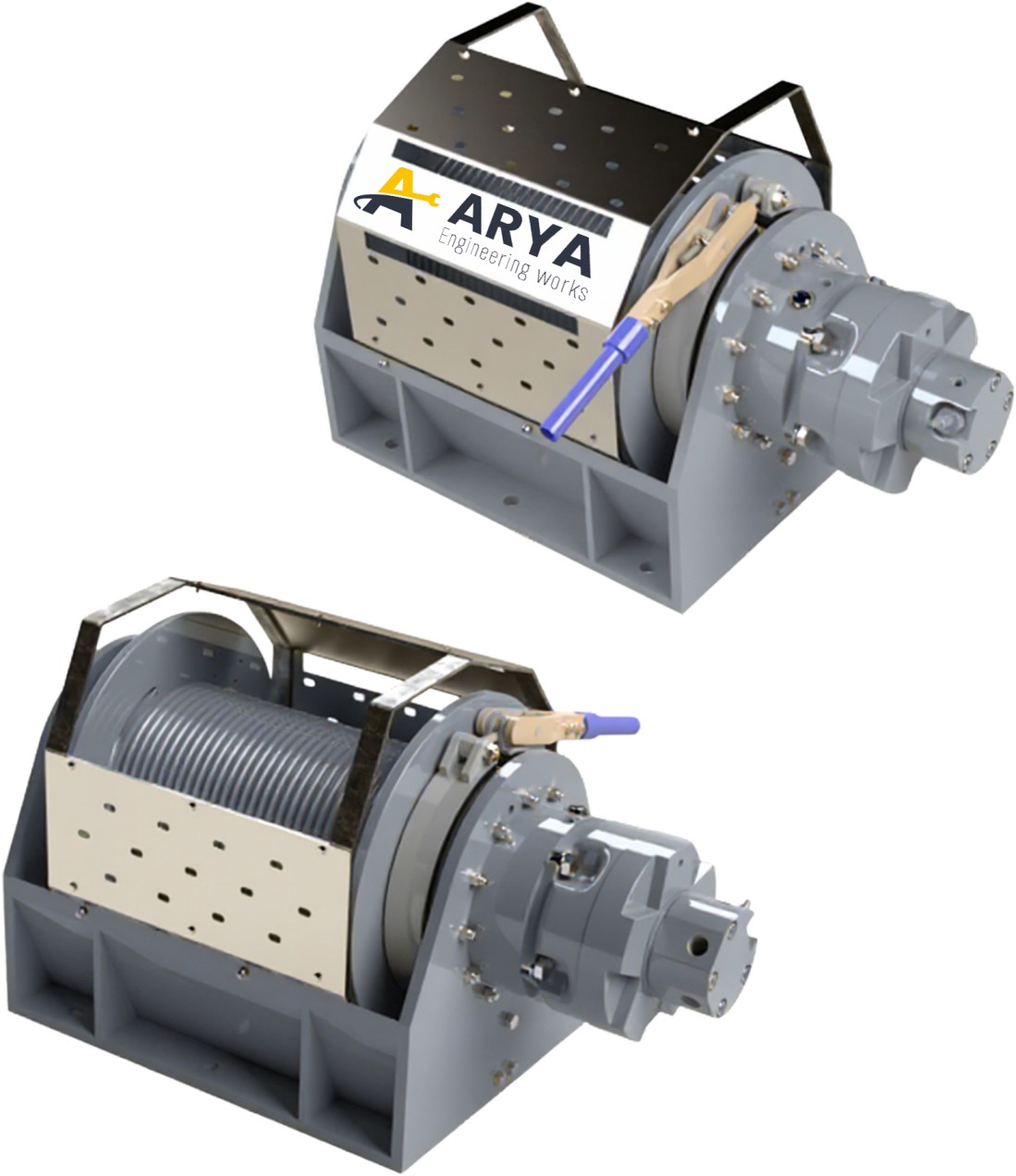

Heavy Duty Hydraulic Planetary Winch
Power your lifting and pulling operations with the Heavy Duty Hydraulic Winch, precision-engineered by Arya Engineering Works. Designed for rugged industrial and marine applications, this winch combines compact power with reliable control. Utilizing a high-efficiency hydraulic motor coupled with a planetary gearbox, it delivers exceptional torque and smooth operation. Whether used for marine mooring, towing, or industrial material handling, this unit is built to withstand heavy loads and harsh environments. The integrated spooling grooves and protective guarding ensure longevity and operator safety.
Specifications
Technical details and standards
- Drive Type: Hydraulic (Orbital / Radial Piston Motor)
- Gearbox: Planetary Reduction Gear
- Pulling Capacity: Customizable (e.g., 5 Ton – 20 Ton)
- Drum Type: Grooved Steel Drum
- Clutch Operation: Manual Lever (Dog Clutch)
- Brake System: Automatic Multi-Disc Brake (Hydraulic Release)
- Rope Capacity: Variable (depending on drum size/rope diameter)
- Finish: Marine Grade Paint / Epoxy Coating
- Brand: Arya Engineering Works
Features
Key product advantages
- High-Torque Drive System: Features a robust hydraulic motor mated to a planetary gearbox, providing high torque output in a compact form factor for efficient heavy lifting.
- Grooved Drum Design: The winch drum is machined with precise grooves (Lebus style option available) to ensure smooth, multi-layer wire rope spooling and prevent cable damage.
- Manual Clutch / Free Spooling: Equipped with a heavy-duty manual clutch lever, allowing for easy free-spooling of the wire rope when not under load.
- Protective Guarding: Comes with a perforated stainless steel/metal top guard to protect the drum and prevent accidental contact with moving parts while allowing visibility of the spool.
- Robust Construction: The entire assembly is mounted on a heavy-gauge steel frame with pre-drilled mounting holes for secure installation on decks or vehicle chassis.
- Safety Braking: Integrated fail-safe braking system within the planetary drive ensures load holding security (standard in planetary winches).
Applications
Common usage scenarios
- Marine & Offshore: Mooring, anchoring, and towing operations on tugs and barges.
- Recovery Vehicles: Heavy-duty towing and recovery for trucks and wreckers.
- Construction: Material hoisting and equipment positioning.
- Mining & Forestry: Skidding and heavy haulage.
Need a winch that works as hard as you do? Contact Arya Engineering Works for a custom proposal on our Hydraulic Planetary Winches.
