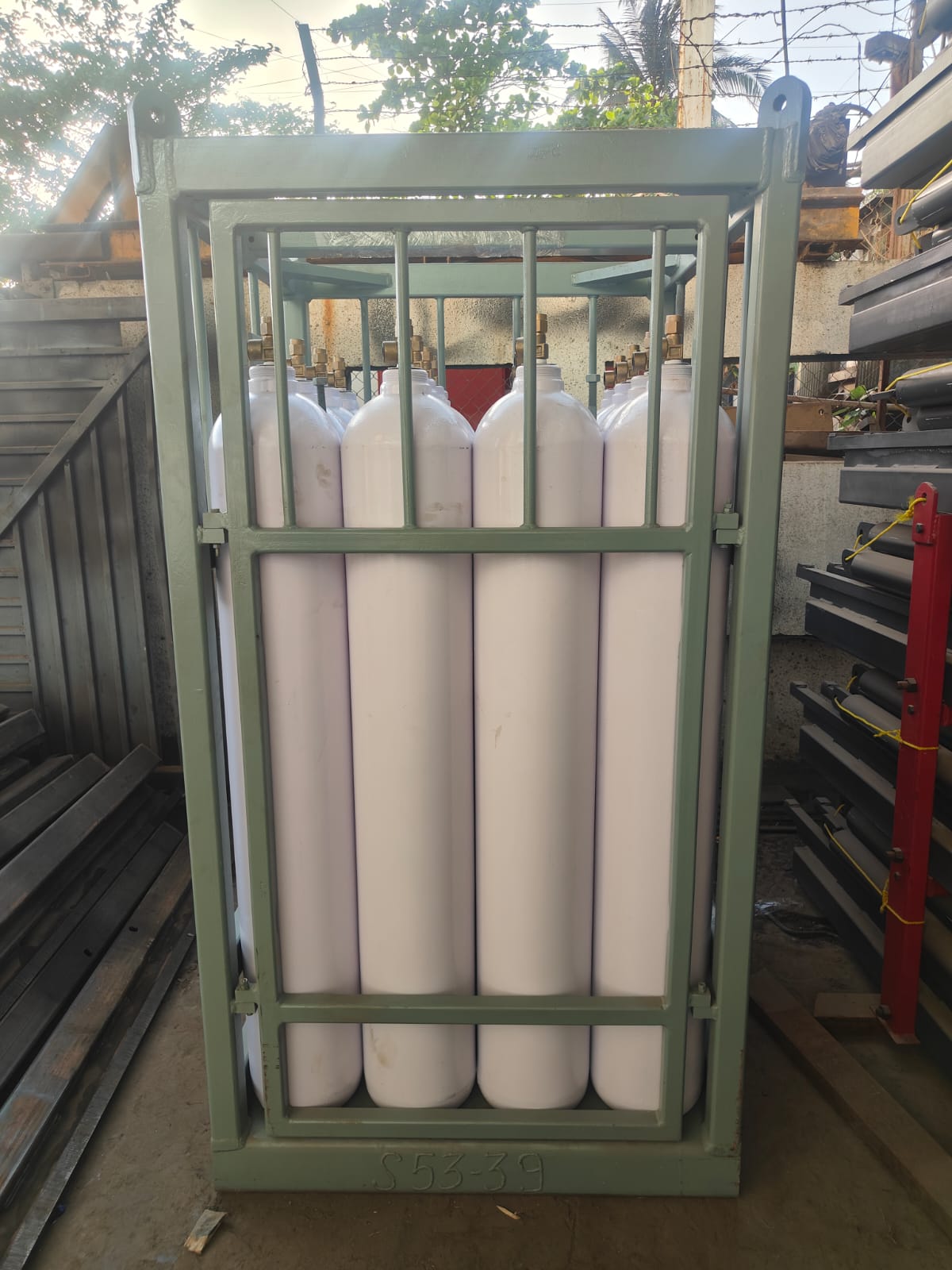

16 Cylinder Gas Quad / Cascade System (Manifolded)
Streamline your industrial gas supply with the 16 Cylinder Gas Quad, manufactured by Arya Engineering Works. Designed for high-volume gas users in construction, offshore, and heavy manufacturing sectors, this cylinder cascade system consolidates 16 high-pressure gas cylinders into a single, mobile unit. The robust steel frame ensures the safe transport and storage of cylinders, while the integrated manifold system allows for a continuous gas supply from a single outlet, reducing downtime associated with changing individual bottles. Whether for Oxygen, Nitrogen, Argon, or specialized gas mixtures, this unit is built to withstand rugged site conditions.
- Capacity: 16 Cylinders (Vertical Configuration)
- Frame Material: Mild Steel (MS) Structural Channel / Angle
- Finish: Epoxy Painted / Galvanized (Corrosion Resistant)
- Manifold Pressure: 200 Bar / 300 Bar (Tested)
- Manifold Material: High-Pressure Brass / Stainless Steel
- Lifting Provisions: 4-Point Top Lifting Eyes & Bottom Forklift Pockets
- Cylinder Type: Compatible with Standard 47L / 50L Industrial Cylinders
- Dimensions: Custom (Approx. 1m x 1m footprint)
- Brand: Arya Engineering Works
- High-Capacity Storage: Securely holds 16 standard industrial gas cylinders (e.g., 40L or 50L capacity) in a compact 4x4 vertical arrangement.
- Centralized Manifold: Equipped with a high-pressure piping and valve system that connects all cylinders to a single outlet point, ensuring consistent pressure and flow.
- Heavy-Duty Lifting Frame: Fabricated from structural steel with reinforced lifting eyes (pad eyes) at the top corners, making it crane-liftable and suitable for offshore or multi-story construction sites.
- Safety & Protection: The cage-style frame fully encloses the cylinders and valves, protecting them from impact damage during transport.
- Secure Locking: Features a robust front gate and internal clamping bars to prevent cylinder movement or vibration during transit.
- Versatile Application: Suitable for various gases including Oxygen, Nitrogen, Argon, Helium, and CO2 (color-coding and valve fittings customizable).
- Offshore & Marine: Safe transport of breathing air or welding gases to platforms and vessels.
- Construction Sites: Central gas supply for cutting, welding, and fabrication crews.
- Industrial Plants: Backup gas storage or primary supply for laser cutting machines and furnaces.
- Medical Facilities: Bulk Oxygen supply backup systems (with medical-grade manifolds).
Optimize your gas logistics today. Contact Arya Engineering Works for a quote on our 16 Cylinder Gas Quads or to request a custom manifold configuration.
